R-1

R-1

Introduction:

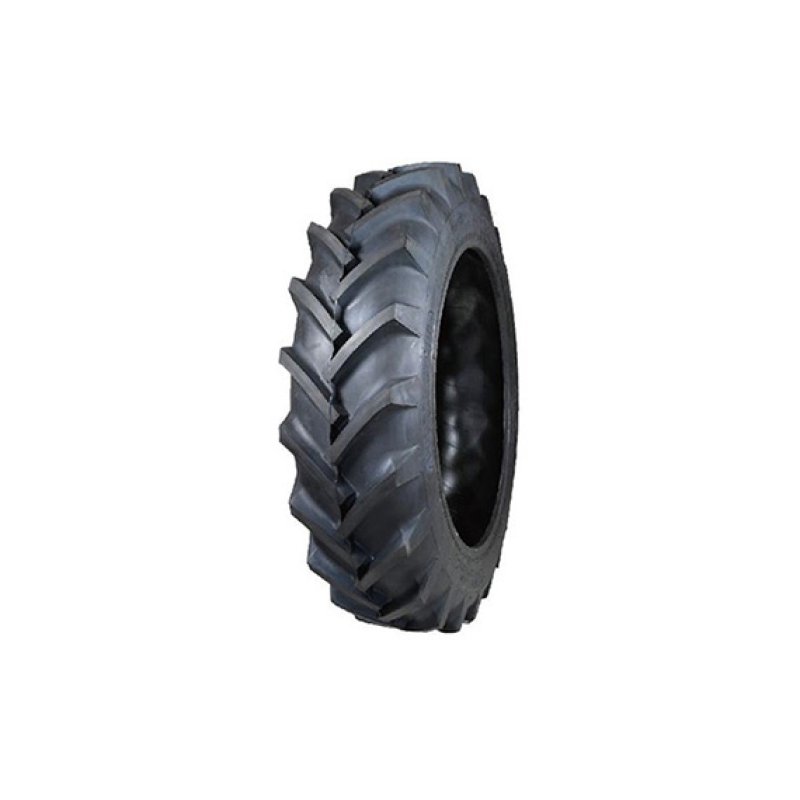

complete specifications of R1 pattern tyres , superior grip and self-cleaning capacity , good aging and wearing resistance enhanced by special formnla design , suitable for farms , logging areas and fieds.

Inquire now

Product Details

Size	PR	Type	Rim	Overall Diameter (mm)	Section Width (mm)	Maximum Load Capacity (Kgs)	Inflation Pressure (Kpa)	Tread depth(mm)


5.00-12	8	TT	4.00E	590	145	280	200	15
5.50-17	10	TT	4.00E	735	150	400	280	18
6.00-12	8	TT	4.50E	640	165	405	250	22
6.00-14	6	TT	4.50E	690	165	450	250	22
6.00-16	8	TT	4.50E/5.00F	745	165	495	250	22
6.50-16	10	TT	4.50E	760	170	630	340	25
7.50-16	10	TT	5.00F	810	205	650	210	24
7.50-20	10	TT	5.00F	910	205	1020	370	24
8.3-20	12	TT	W7	950	210	880	250	26
8.3-24	12	TT	W7	995	210	810	240	28
8.5-20	8	TT	W7	895	210	705	230	30
9.5-20	10	TT	W8	950	240	955	280	33
9.5-24	10	TT	W8	1050	240	1110	280	28
11-38	8	TT	W10	1530	294	1630	180	35
11.2-24	8	TT	W10/W9	1105	285	1045	180	34
11.2-28	10	TT	W10	1205	285	1305	240	34
11.2-38	10	TT	10	1459	285	1055	120	35
12.4-24	10	TT	W11	1160	315	1415	230	30
12.4-28	10	TT	W10/W9	1260	315	1115	180	30
12-38	10	TT	DW11	1575	330	1800	220	35
13.6-24	10	TT	W12	1210	345	1790	250	37
13.6-28	10	TT	W12	1310	345	1910	250	33
13.6/12-38	10	TT	DW11	1548	318	1570	140	35
14.9-24	10	TT	W13	1265	378	1990	230	38
14.9-26	10	TT	W13	1315	378	2055	230	38
14.9-28	10	TT	W13	1365	378	2120	230	39
14.9-30	10	TT	W13	1415	378	2190	230	38
15-24	14	TT	W14	1310	400	2800	280	30
15.5-38	10	TT	W14L	1570	395	2320	230	36
16.9-24	10	TT	W15L	1335	429	1960	200	39
16.9-28	10	TT	W15L	1435	430	2575	240	39
16.9-30	10	TT	W15L	1485	430	2245	170	39
16.9-34	10	TT	W15L	1585	430	2605	200	40
16.9-38	10	TT	W15L	1685	464	2760	200	36
18.4-26	10	TT	DW16	1450	467	2645	180	38
18.4-30	12	TT	DW16A	1550	485	2815	180	41
18.4-34	12	TT	W16L	1650	465	2990	180	38
18.4-38	12	TT	W16L	1755	467	3165	180	41
18.4-42	12	TT	W16	1857	467	3330	180	35
20.8-38	12	TT	W18L	1835	528	3475	160	42
23.1-26	12	TT	DW20	1605	587	3610	170	42
